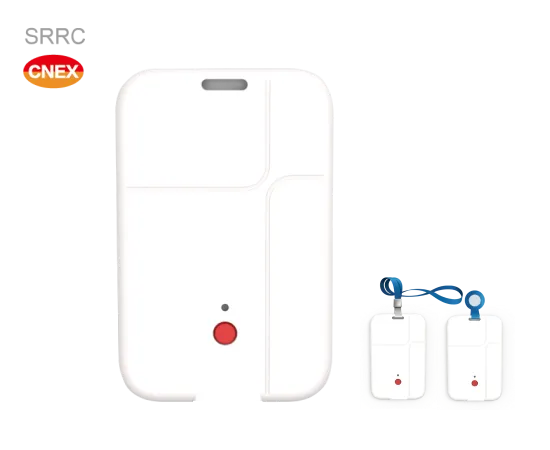

  • UT-320 Card-type Personnel Positioning Tag
    Frequency Band: 7.74 GHz~8.24 GHz(Channel 9)
    Power supply: DC 5V (4pin Magnetic Charging Connector)
    Transmit Power: ≤ -41dBm/MHz(Adjustable Power)
    Standby Duration: >1month
    Operating Temperature: -20°C~60°C
    Wearing Method: Neck/Arm Wear
    Protection Rating: IP67
    Explosion-Proof Rating: Ex ib llC T6 Gb/Ex ib llC T80°C Db
    RoHs Compliant

    ● Intelligent Sleep Mode       ● Vibration Alert                  ● SOS

    ● Low Battery Warning        ● Fall Detection Alert          ● Buzzer

    ● AOA                                  ● RFID (Optional)                ● Barometer (Optional)



    Data sheet

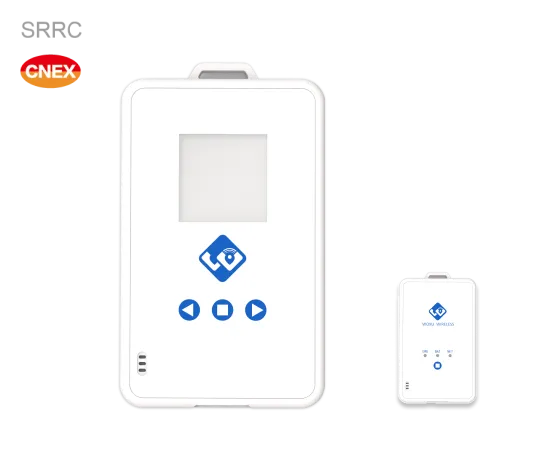

  • UT-350 Card-Type Fusion Tag
    Frequency Band: 7.74GHz~8.24GHz(Channel 9)
                                   BLE: 2.4GHz~2.4835GHz
    Power supply: Dc 5V (4pin Magnetic Charging Connector)
    Transmit Power: ≤ -41dBm/MHz (Adjustable Power)
    Standby Duration: >7 Days
    Operating Temperature: -20°C~60°C
    Wearing Method: Neck/Arm Wear
    Protection Rating: IP67
    Explosion-Proof Rating: Ex ib llC T6 Gb/Ex ib llC T80°C Db
    RoHs Compliant

    ● Intelligent Sleep Mode          ● Vibration Alert                      ● SOS


    ● Low Battery Warning             ● Fall Detection Alert               ● Buzzer



    ● AOA                                       ● Button Scrolling                    ● CAT1/LoRa (Selectable)



    ● RFID (Optional)                      ● BLE5.1(Optional)                   ● Barometer (Optional)



    ● 1.5inch E-Ink Display (Optional)                            ● GNSS (RTK) Support (Optional)


    ● Voice Call Functionality (Optional)


    Data sheet

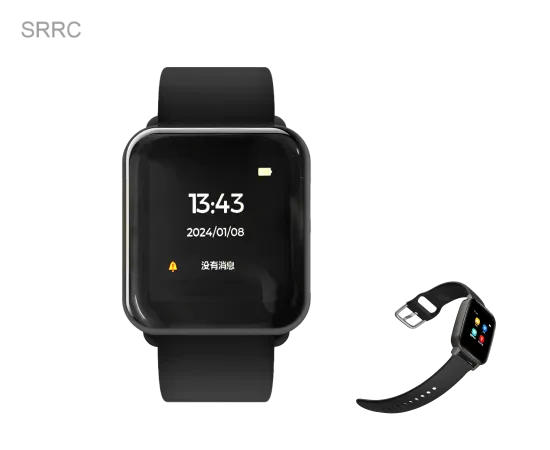

  • UT-329 Smart Touchscreen Watch
    Frequency Band: 7.74GHz~8.24GHz(Channel 9)
                                   BLE: 2.4GHz~2.4835GHz
    Power supply: DC 5v (4pin Magnetic Charging Connector)
    Transmit Power: ≤-41dBm/MHz (Adjustable Power)
    Standby Duration: >1 Month
    Operating Temperature: -20°C~60°C
    Wearing Method: Wrist Wear
    Protection Rating: IP67
    RoHs Compliant

    ● Intelligent Sleep Mode                  ● Vibration Alert                  ● SOS


    ● Low Battery Warning                    ● Fall Detection Alert          ● AOA


    ● Full Touch Color Screen               ● Step Counting                 ● RFID (Optional)


    ● BLE 5.1 (Optional)                        ● Heart Rate and Blood Oxygen (Optional)


    ● Body Temperature Monitoring (Optional)


    Data sheet

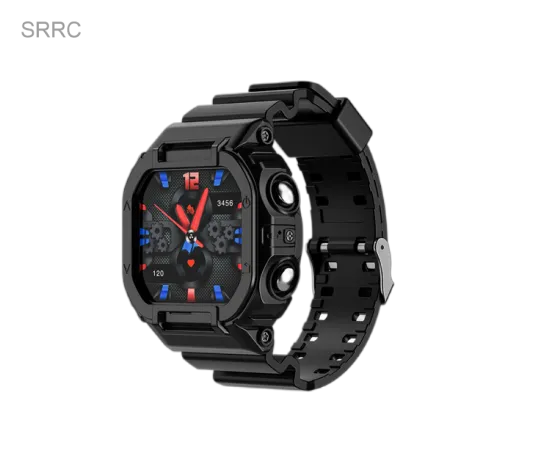

  • UT-349 Smart Touchscreen Positioning Watch
    Frequency Band: 7.74GHz~8.24GHz(Channel 9)
                                   BLE:2.4GHz~2.4835GHz
    Power supply: DC 5v (4pin Magnetic Charging Connector)
    Transmit Power: ≤ -41dBm/MHz (Adjustable Power)
    Standby Duration: >10 Days
    Operating Temperature: -20°C~60°C
    Wearing Method: Wrist Wear
    Protection Rating: IP67
    RoHs Compliant

    ● Intelligent Sleep Mode        ● Vibration Alert            ● SOS


    ● Low Battery Warning          ● AOA                           ● Full Touch Color Screen


    ● Step Counting                    ● CAT1                          ● BeiDou (Optional)


    ● BLE 5.3 (Optional)              ● Barometer (Optional)


    ● Heart Rate and Blood Oxygen(Optional)


    Data sheet
  • UT-229 Wristband Positioning Tag
    Frequency Band: 3.77GHz~4.24GHz(Channel 2)
                                   6.24GHz~6.74GHz(Channel 5)
                                   BLE:2.4GHz~2.4835GHz
    Power supply: DC 5v (4pin Magnetic Charging Connector)
    Transmit Power: ≤ -41dBm/MHz (Adjustable Power)
    Standby Duration: >1 Month
    Operating Temperature: -20°C~60°C
    Wearing Method: Wrist Wear/Hard Hats
    Protection Rating: IP67
    Explosion-Proof Rating: Ex ib llC T6 Gb/Ex ib llC T80°C Db
    RoHs Compliant

    ● Intelligent Sleep Mode       ● Vibration Alert             ● SOS


    ● Low Battery Warning         ● Fall Detection Alert      ● Buzzer


    ● BLE 5.3 (Optional)


    Data sheet

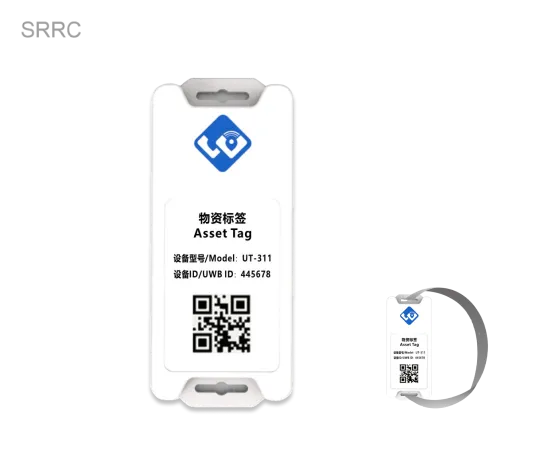

  • UT-311 Asset Positioning Tag
    Frequency Band: 7.74GHz~8.24GHz(Channel 9)
    Power supply: Battery-Powered
    Transmit Power: ≤ -41dBm/MHz (Adjustable Power)
    Standby Duration: >4 Years
    Operating Temperature: -10°C~50°C
    Wearing Method: Adhesive Mount/Screw Fixation
    Protection Rating: lP43/P68
    RoHs Compliant

    ● Intelligent Sleep Mode              ● Low Battery Warning             ● AOA


    Data sheet
  • UT-316-E3 E-Paper Asset Positioning Tag
    Frequency Band: UWB: 6.24 GHz~6.74 GHz (Channel 5)
    7.74 GHz~8.24 GHz (Channel 9)
    BLE：2.4 GHz~2.4835 GHz
    Power Supply: DC 5V
    Transmit Power: ≤ -41dBm/MHz (Adjustable Power)
    Standby Duration: >20 Days
    Operating Temperature: 0°C~50°C
    Protection Rating: IP67
    RoHs Compliant

    ● Intelligent Sleep Mode         ● Low Battery Warning           ● 2.9-inch E-Ink Display

    Data sheet

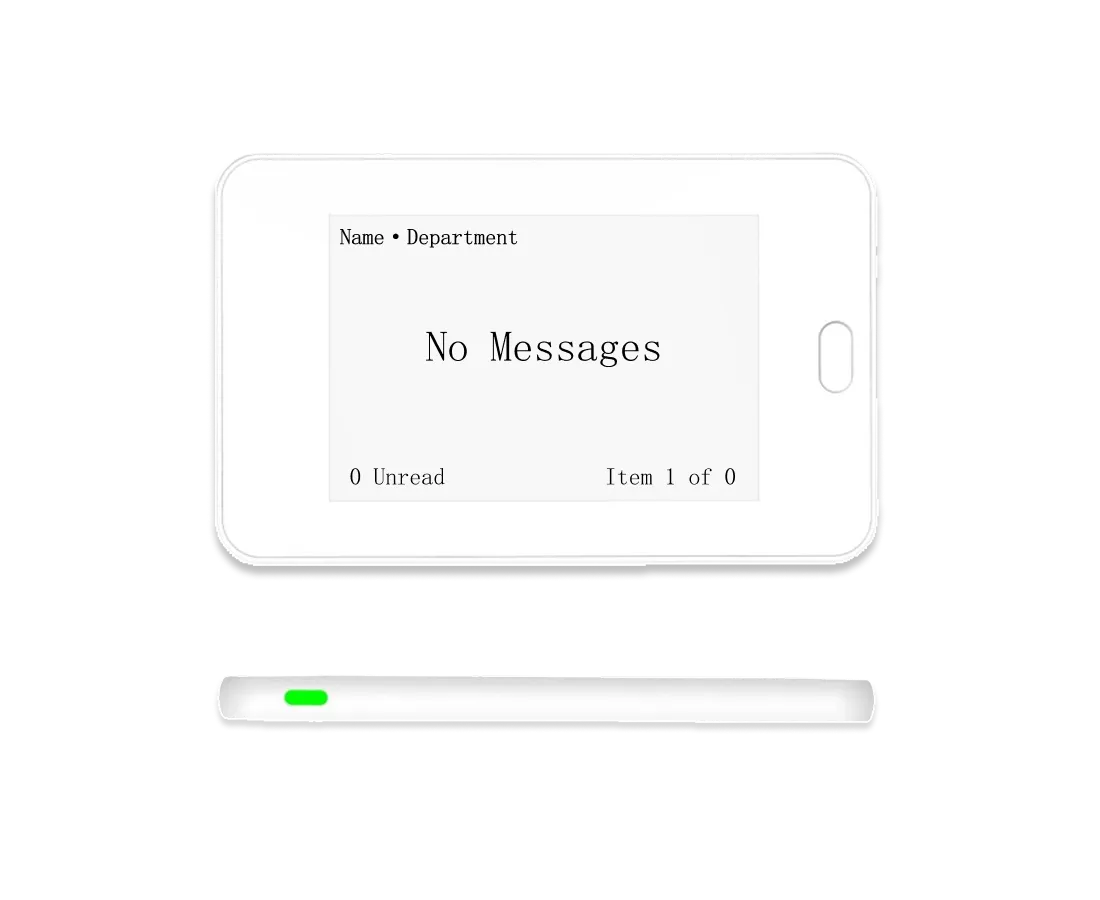

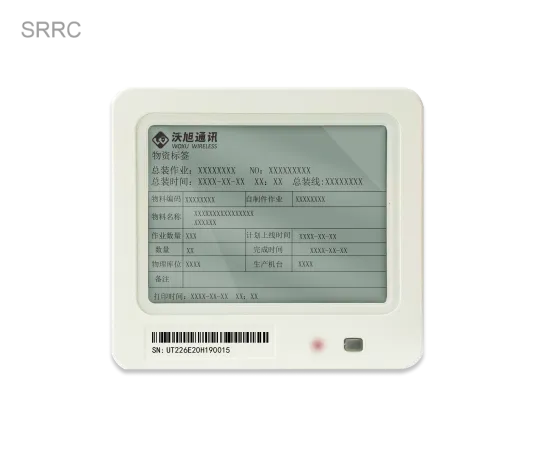

  • UT-226-E4 E-Paper Asset Positioning Tag
    Frequency Band: 7.74GHz~8.24GHz (Channel 9)
                                   BLE: 2.4GHz~2.4835GHz
    Power supply: Battery-Powered
    Transmit Power: ≤ -41dBm/MHz (Adjustable Power)
    Standby Duration: >5 Years
    Operating Temperature: 0°C~50°C
    Wearing Method: Fixed by screws
    Protection Rating: IP65
    RoHs Compliant

    ● Intelligent Sleep Mode         ● Low Battery Warning           ● Button Scrolling


    ● 4.2-inch E-Ink Display           ● BLE5.0 (Optional)


    Data sheet

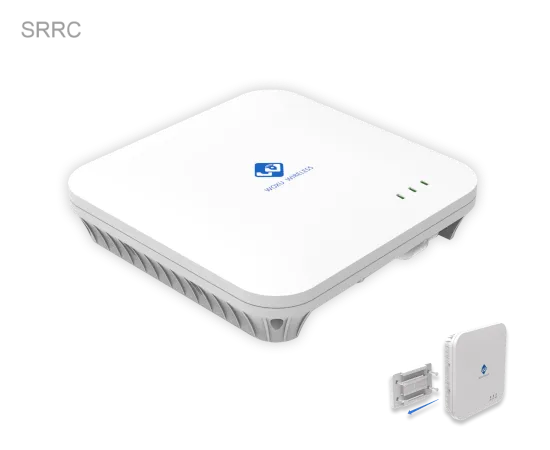

  • UA-330 Indoor Positioning Anchor
    Frequency Band: 7.74GHz~8.24GHz(Channel 9)
    Power supply: PoE IEEE 802.3 af/at
    Transmit Power: ≤ -41dBm/MHz (Adjustable Power)
    Operating Temperature: -40°C~85°C
    Mounting Type: Wall-Mounted, Ceiling-Mounted, Pole-Mounted
    Protection Rating: lP67
    RoHs Compliant

    ● AOA

    Data sheet

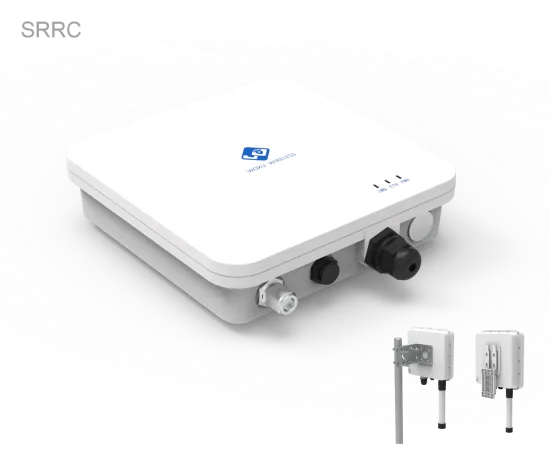

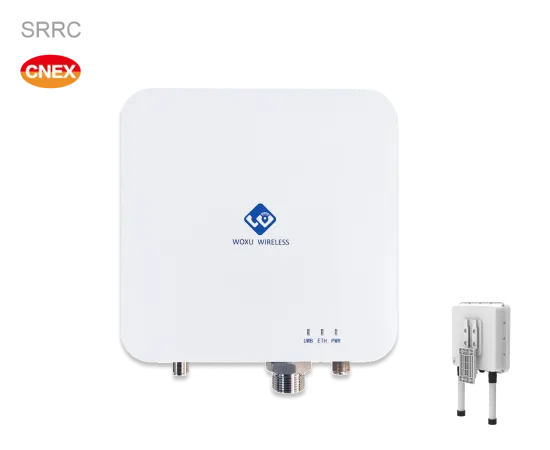

  • UA-330-O Outdoor Positioning Anchor
    Frequency Band: 7.74GHz~8.24GHz(Channel 9)
    Power supply: PoE IEEE 802.3 af/at
    Transmit Power: ≤ -41dBm/MHz (Adjustable Power)
    Operating Temperature: -40°C~85°C
    Mounting Type: Wall-Mounted, Pole-Mounted
    Protection Rating: lP67
    Explosion-Proof Rating: Ex ib llC T6 Gb/Ex ib lllC T80°C Db
    RoHs Compliant
    Data sheet
  • DG-450 Communication Gateway
    Frequency Band: UWB :7.74 GHz~8.24 GHz (Channel 9)
                                   LoRa:470~510MHz
                                   BLE:2.4 GHz~2.4835 GHz
    Power supply: PTE 12V(Nominal)
    Transmit Power: ≤ -41dBm/MHz(Adjustable Power)
    Operating Temperature: -40°C~85°C
    Mounting Type: Wall Mount, Pole Mount
    Data Backhaul: Wired/5G(Optional)
    Protection Rating: lP67
    Explosion-Proof Rating: Ex ib llC T6 Gb / Ex ib lllC T80°C Db
    RoHs Compliant

    ● GNSS

    Data sheet

    • Battery Life

    Rechargeable models: Tested under TOF, 1 Hz, 10 h active / 14 h sleep per 24 h cycle (Nanjing Woxu accredited lab). Primary-battery models: Tested under TDOA, 1 Hz, 2 h active / 22 h sleep per 24 h cycle, 5 screen refreshes daily (Nanjing Woxu accredited lab).
