Product Name: UWB High Power
Tag Product Model: UT-22A Chip
Model: AMA3B1KK+DW1000
Product Dimensions: 78mm(L)×50.6mm(W)×33mm(H)
Weight: 90g
Parameter | Description | Remarks |
Electrical Spec | ||
Supply Voltage | 4.2V | |
Standby Current | 88uA | |
Normal Operating Current | 4.15mA | |
Maximum Operating Current | 262.5mA | |
RF Spec | ||
Frequency Range | 6.24 GHz~6.73 GHz(CH5) 7.74GHz~8.24GHz(CH9) | |
Tx Power | -41dBm/MHz(typical,adjustable) | |
Measuring Distance | LOS 50m | |
Physical Spec | ||

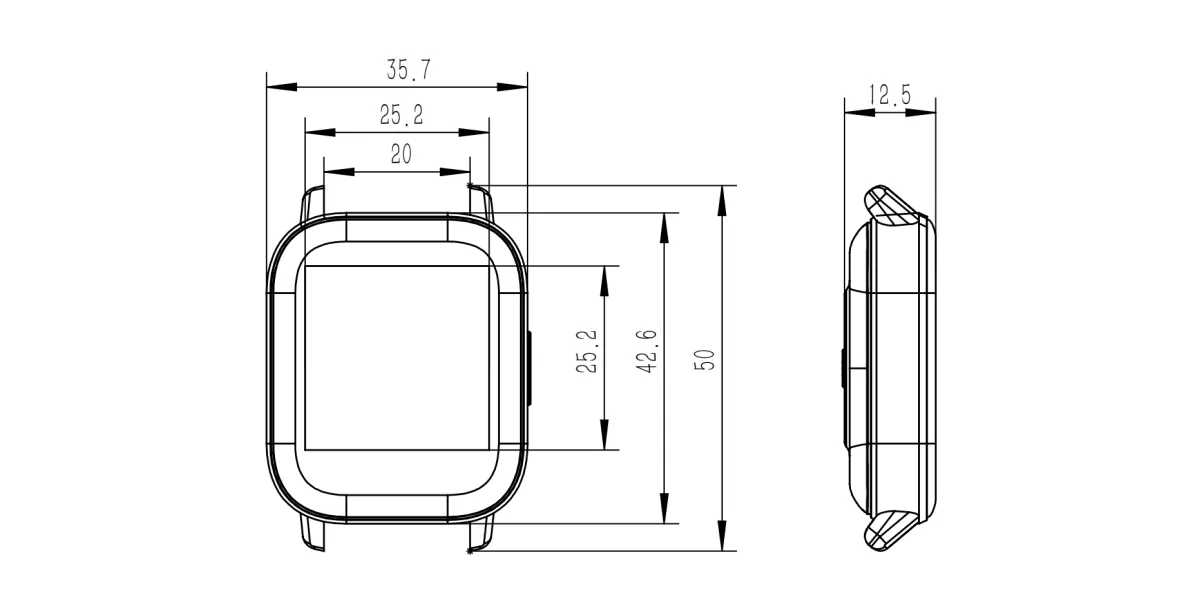

Dimension | 42.6mm(L)×35.7mm(W)×12.5mm(H) | |
Weight | 38g（including strap） | |
Environment Spec | ||
Operating Temperature | -20ºC~65ºC | |
Storage Temperature | -20℃~65℃ | |
Operating Humidity | 5%~95% RH, non-condensing | |
Protection Rating | IP68 |
