Product Name: UWB High Power
Tag Product Model: UT-22A Chip
Model: AMA3B1KK+DW1000
Product Dimensions: 78mm(L)×50.6mm(W)×33mm(H)
Weight: 90g
Parameter | Description | Remarks |
Electrical Spec | ||
Supply Voltage | 3.3V | |
Standby Current | 158mA | |
Normal Operating Current | 336mA | |
Maximum Operating Current | 511mA | |
RF Spec | ||
Frequency Range | 3.77GHz~4.24GHz(CH2) | |
Tx Power | -41dBm/MHz(typical, adjustable) | |
Measuring Distance | LOS 500m | |
Physical Spec | ||

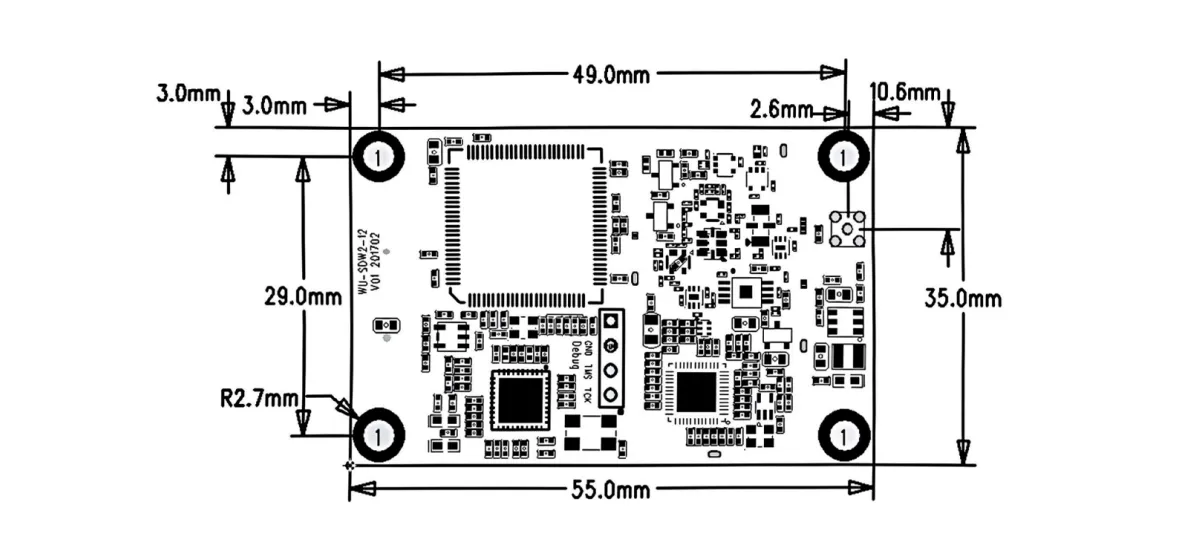

Dimension | 55mm(L)×35mm(W)×5.5mm(H) | |
Weight | 8.5g | |
Environment Spec | ||
Operating Temperature | -40ºC~75ºC | |
Storage Temperature | -20ºC~60ºC | |
Operating Humidity | 0%~90% RH, non-condensing |
