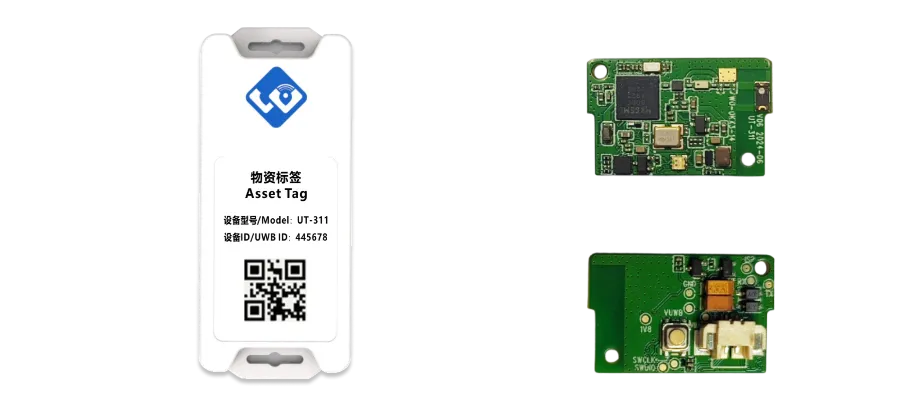

UT-311
Tiny Asset Tag
Product Overview
  • UWB Asset Tag
  • Ultra-Low Power Consumption
  • Tiny Size
    • Basic Information

    Product Name: UWB High Power

    Tag Product Model: UT-22A Chip

    Model: AMA3B1KK+DW1000

    Product Dimensions: 78mm(L)×50.6mm(W)×33mm(H)

    Weight: 90g

    Product Features
  • Based on MK8000 SOC
IEEE 802.15.4a/4z
  • High-Band
(CH5/CH9) Design
  • with 3-Axis Accer
  • High Capicity(800mAh)
One Time Battery
  • Tiny Size
  • IP43/IP68
    • Function Block Diagram

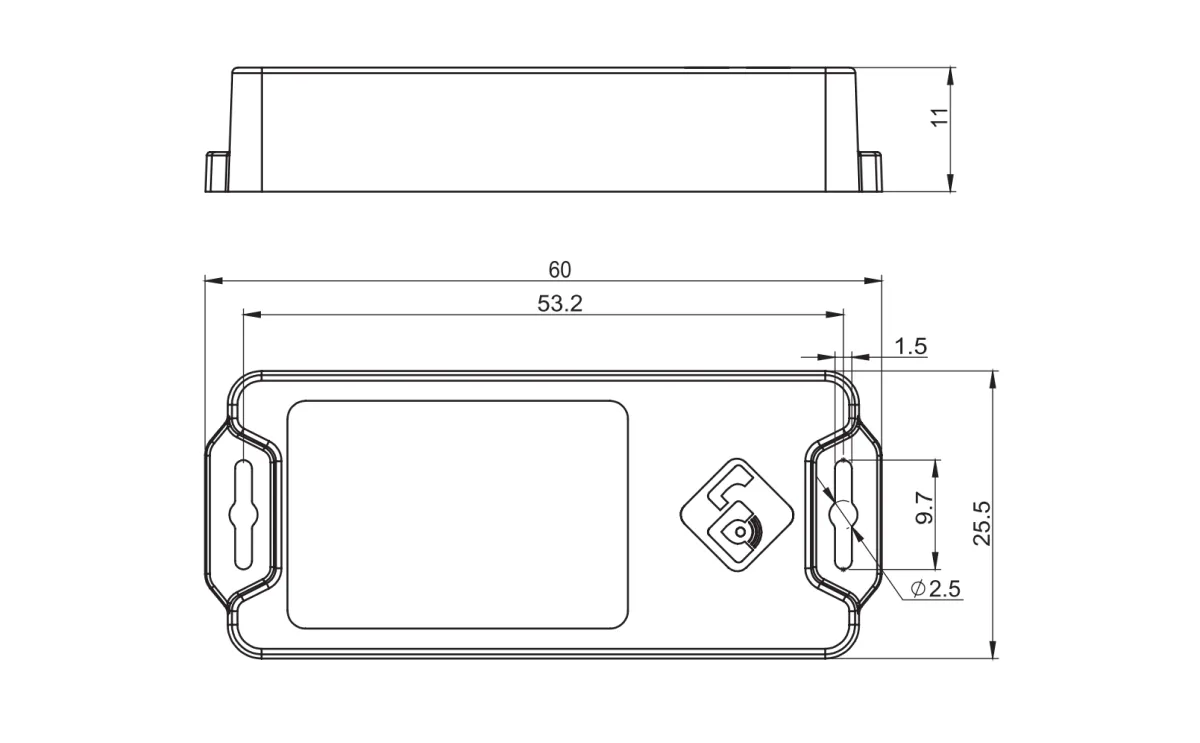

    Product Dimensions
    Electrical parameters
    ParameterDescription            Remarks

    Electrical Spec



    Supply Voltage

    3V


    Standby Current

     8uA


    Normal Operating Current

    27.2mA


    Maximum Operating Current

    64.8mA


    RF Spec



    Frequency Range

    6.24 GHz~6.73 GHz(CH5)

    7.74GHz~8.24GHz(CH9)


    Tx Power

    -41dBm/MHz(typical, adjustable)


    Measuring Distance

    LOS 60m


    Physical Spec

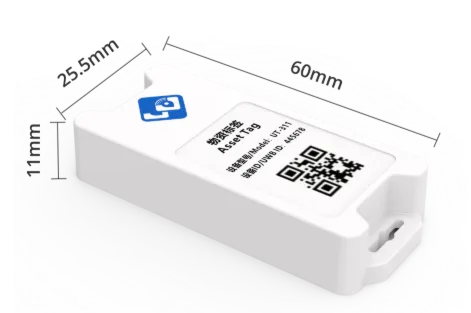

    Dimension

    60mm(L)×25.5mm(W)×11mm(H)


    Weight

    15.3g


    Environment Spec



    Operating Temperature

    -20ºC~60ºC


    Storage Temperature

    -30ºC~70ºC


    Protection Rating

    IP43/IP68
