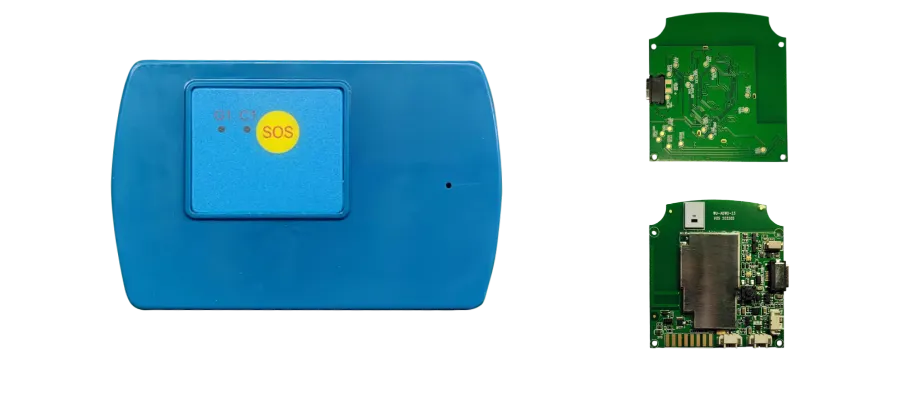

UT-22A
Asset Positioning Tag
Product Overview
  • UWB Tag
  • Ultra-low Power Consumption
  • Explosion-Proof Design
    • Basic Information

    Product Name: UWB High Power

    Tag Product Model: UT-22A Chip

    Model: AMA3B1KK+DW1000

    Product Dimensions: 78mm(L)×50.6mm(W)×33mm(H)

    Weight: 90g

    Product Features
  • Based on DW1000 IEEE 802.15.4a
  • Tx Power：-41dBm/MHz
(typical, adjustable)
  • Alarm Support
(SOS、buzzer & motor)
  • Equipped with 1000mAh
Rechargeable Battery
  • DC 5V power supply
(Micro-USB)
  • IP65
    • Function Block Diagram

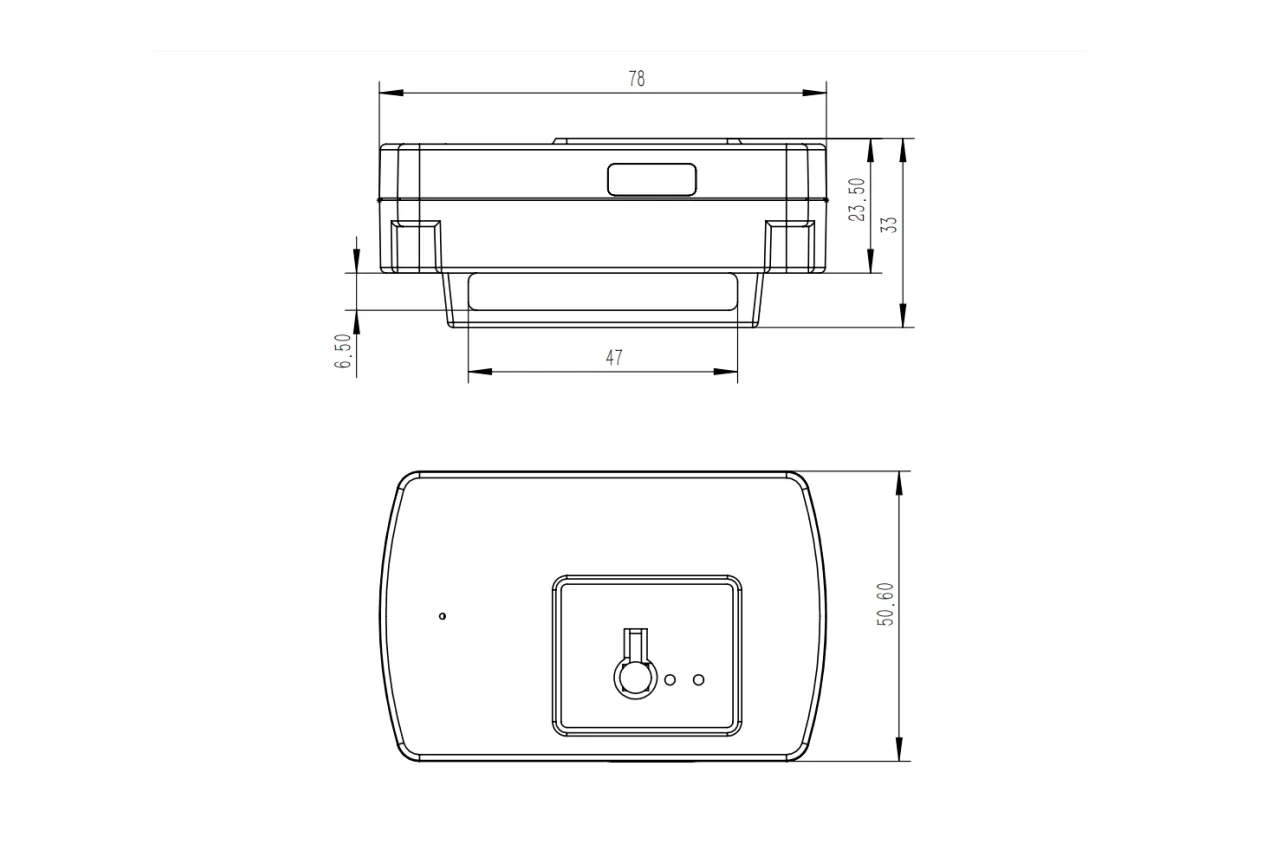

    Product Dimensions
    Electrical parameters

    Parameter

    Description

    Remarks

    Electrical Spec



    Supply Voltage

    5V


    Standby Current

     25uA


    Normal Operating Current

    13.7mA


    Maximum Operating Current

    347mA


    RF Spec



    Frequency Range

    3.77GHz~4.24GHz


    Tx Power

    -41dBm/MHz(typical, adjustable)


    Measuring Distance

    LOS 650m


    Physical Spec



    Dimension

    78mm(L)×50.6mm(W)×33mm(H)


    Weight

    90g


    Environment Spec



    Operating Temperature

    -5ºC~40ºC


    Storage Temperature

    -10ºC~40ºC


    Operating Humidity

    5%~95% RH, non-condensing


    Protection Rating

    IP65
