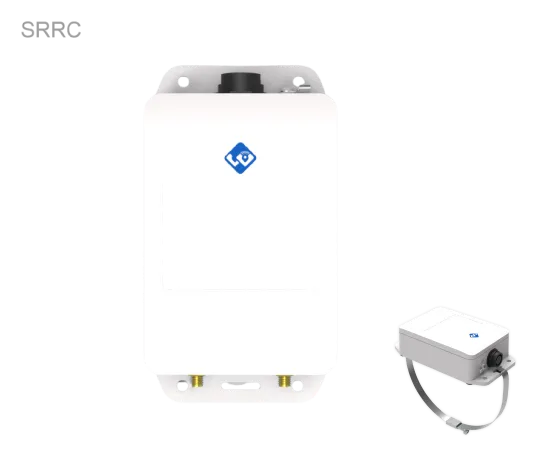

UG-340 Positioning Gateway

Frequency Band: 7.74GHz~8.24GHz(Channel 9)
BLE:2.4GHz~2.4835GHz
Power supply: DC 9V~57V
DC 48V(Nominal)
Transmit Power: ≤ -41dBm/MHz(Adjustable Power)
Operating Temperature: -40°C~85°C
Mounting Type: Vehicle-Mounted
Protection Rating: IP65
RoHs compliant

● BLE5.0 (Optional) ● AOA ● RTK (Optional)

● CAT1/Wi-Fi (Selectable) ● Supports RS485/CAN/RS232 interfaces

● Supports wireless configuration via APP (Optional)
● External output 5V power supply interface

Data sheet

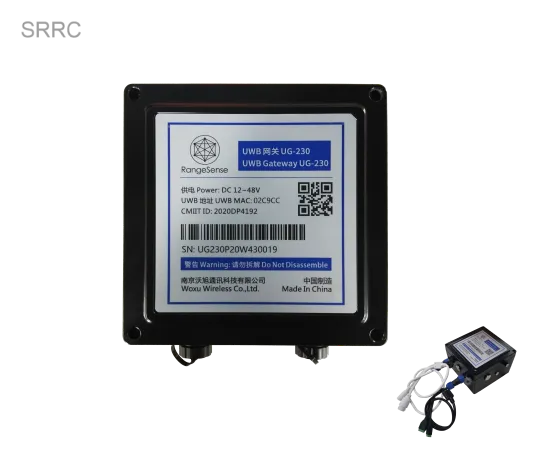

UG-230 Ranging Gateway

Frequency Band: 3.77 GHz~4.24 GHz(Channel 2)
6.24 GHz~6.74 GHz (Channel 5)
Power supply: DC 12V~48V
DC 24V (Nominal)
Transmit Power: ≤ -41dBm/MHz(Adjustable Power)
Operating Temperature: -20°C~60°C
Mounting Type: Vehicle-Mounted
Protection Rating: IP65
RoHs compliant

● Two independent relays ● RS485

Data sheet

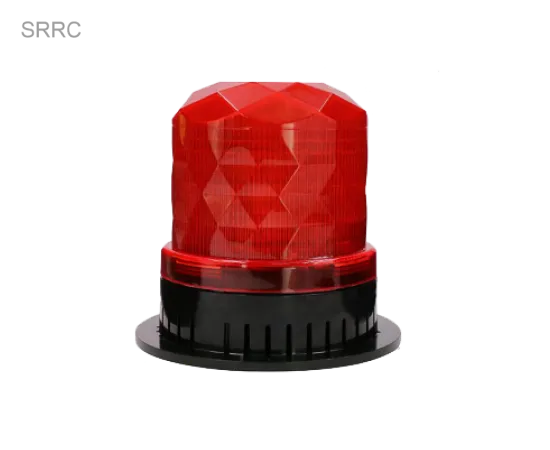

UG-520 Anti-collision Warning Light

Frequency Band: 7.74GHz~8.24GHz (Channel 9)
BLE:2.4GHz~2.4835GHz
Power supply: DC 12V~48V
DC 24V (Nominal)
Transmit Power: ≤ -41dBm/MHz (Adjustable Power)
Operating Temperature: -20°C~65°C
Mounting Type: Vehicle-Mounted
Protection Rating: IP65
RoHs compliant

● RS485 ● Audible and visual alarm

● Customization ● Voice

Data sheet
